萨科微SL-W-TRS-5.5Dx数字红外热电堆demo板使用教程

应用案例|Application Cases|

2024-10-17 15:09:10 770

深圳市萨科微SLKOR(WWW.SLKORMICRO.COM)半导体有限公司技术骨干来自清华大学和韩国延世大学，以新材料新工艺新产品引领公司发展，较早就掌握国际 .的第三代半导体碳化硅功率器件技术。萨科微集电子产品的设计开发、生产和销售一体化的高新科技企业，为客户提供可靠的产品和配套的技术服务，“slkor”逐渐发展成为国际知名品牌，为全 .超过10000家客户提供产品和解决方案。为了努力为客户提供全系列的配套产品，萨科微推出一系列数字红外热电堆非接触测温应用设计demo板使用教程。

1.1名称：萨科微数字红外热电堆非接触测温应用设计demo板使用教程

1.2应用：智能可穿戴设备、智能手机、工业温度监测、非接触表面人体测温、智能温度感应与控制等近距离测温尺寸较小的设备

1.3萨科微SL-W-TRS-5.5Dx系列demo板：

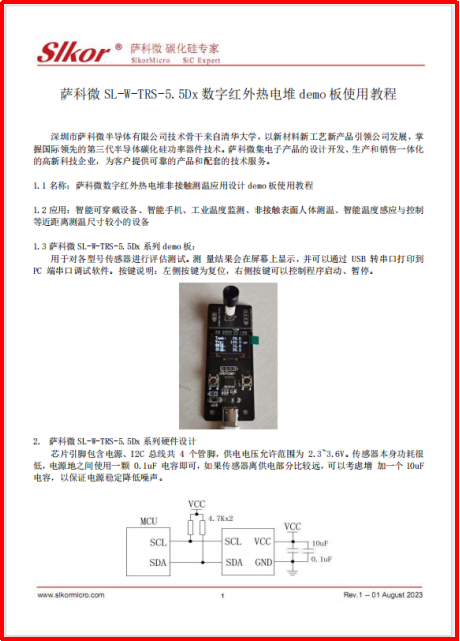

用于对各型号传感器进行评估测试。测量结果会在屏幕上显示，并可以通过 USB 转串口打印到 PC 端串口调试软件。按键说明：左侧按键为复位，右侧按键可以控制程序启动、暂停。

2．萨科微SL-W-TRS-5.5Dx系列硬件设计

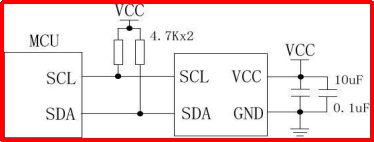

芯片引脚包含电源、I2C 总线共 4 个管脚，供电电压允许范围为 2.3~3.6V。传感器本身功耗很低，电源地之间使用一颗 0.1uF 电容即可，如果传感器离供电部分比较远，可以考虑增加一个10uF 电容，以保证电源稳定降低噪声。

3.萨科微（www.slkoric.com）SL-W-TRS-5.5Dx系列demo板说明

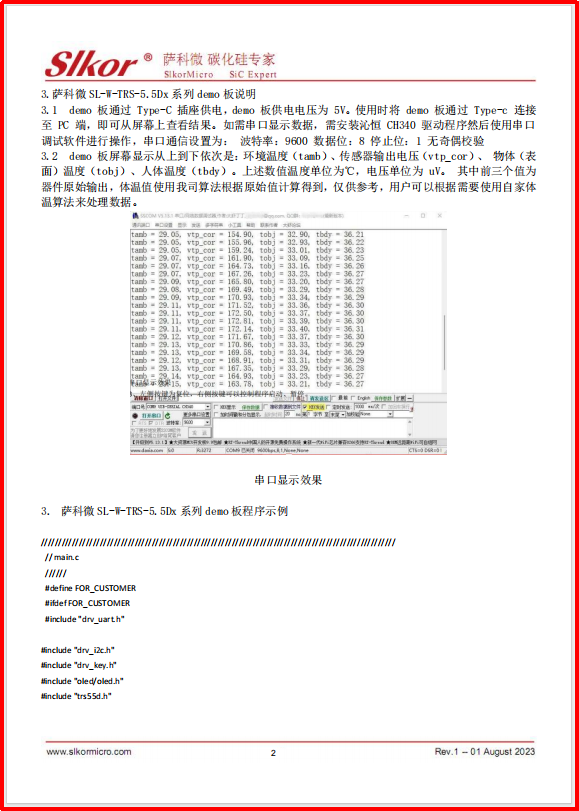

3.1 demo 板通过 Type-C 插座供电，demo 板供电电压为 5V。使用时将 demo 板通过 Type-c 连接至 PC 端，即可从屏幕上查看结果。如需串口显示数据，需安装沁恒 CH340 驱动程序然后使用串口调试软件进行操作，串口通信设置为：波特率：9600 数据位：8 停止位：1 无奇偶校验

3.2 demo 板屏幕显示从上到下依次是：环境温度（tamb）、传感器输出电压（vtp_cor）、物体（表面）温度（tobj）、人体温度（tbdy）。上述数值温度单位为℃，电压单位为 uV。其中前三个值为器件原始输出，体温值使用我司算法根据原始值计算得到，仅供参考，用户可以根据需要使用自家体温算法来处理数据。

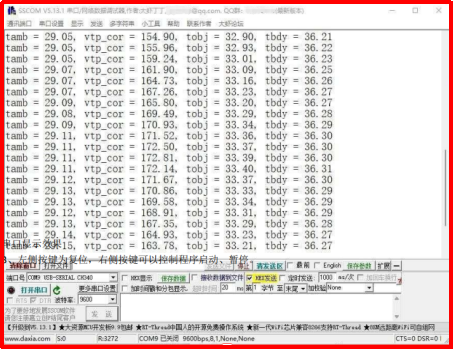

串口显示效果

3．萨科微SL-W-TRS-5.5Dx系列demo板程序示例

//////////////////////////////////////////////////////////////////////////////////////////////////////

// main.c

//////

#define FOR_CUSTOMER

#ifdef FOR_CUSTOMER

#include "drv_uart.h"

#include "drv_i2c.h"

#include "drv_key.h"

#include "oled/oled.h"

#include "trs55d.h"

extern void SystemCoreClockupdate(void);

extern void delay_ms(int cnt);

int main(void)

{

uint8_t key;

uint8_t run = 0x01;

SystemCoreClockupdate();

if (SysTick_Config(SystemCoreClock / 1000))

while(1);

uartInit();

drv_i2c_init();

drv_key_init();

OLED_Init();

OLED_Refresh();

OLED_Clear();

OLED_ShowString(8,0,"Tamb:",16,1);

OLED_ShowString(8,16,"Vtp:",16,1);

OLED_ShowChinese(8,32,0,16,1);

OLED_ShowChinese(24,32,2,16,1);

OLED_ShowChinese(40,32,3,16,1);

OLED_ShowChinese(8,48,1,16,1);

OLED_ShowChinese(24,48,2,16,1);

OLED_ShowChinese(40,48,3,16,1);

OLED_Refresh();

uartSendString("SL-W-TRS-5.5Dx Demo program ");

while(1) {

key = drv_key_read();

while(drv_key_read());

if (key) {

run = (run)?0:1;

}

if (run) {

TRS55D_read();

OLED_Refresh();

}

delay_ms(20);

}

//////////////////////////////////////////////////////////////////////////////////////////////////////

//trs55d.h

//////

#ifndef _TRS55D_H_

#define _TRS55D_H_

#include

#define TRS55D_NORMAL_Tobj_MSB_R 0x10

#define TRS55D_NORMAL_Tobj_CSB_R 0x11

#define TRS55D_NORMAL_Tobj_LSB_R 0x12

#define TRS55D_NORMAL_TEMP_MSB_R 0x16

#define TRS55D_NORMAL_TEMP_CSB_R 0x17

#define TRS55D_NORMAL_TEMP_LSB_R 0x18

#define TRS55D_NORMAL_DATA1_MSB_R 0x19

#define TRS55D_NORMAL_DATA1_CSB_R 0x1A

#define TRS55D_NORMAL_DATA1_LSB_R 0x1B

#define TRS55D_NORMAL_DATA2_MSB_R 0x1C

#define TRS55D_NORMAL_DATA2_CSB_R 0x1D

#define TRS55D_NORMAL_DATA2_LSB_R 0x1E

#define TRS55D_RAW_DATA1_MSB_R 0x22

#define TRS55D_RAW_DATA1_CSB_R 0x23

#define TRS55D_RAW_DATA1_LSB_R 0x24

#define TRS55D_RAW_DATA2_MSB_R 0x25

#define TRS55D_RAW_DATA2_CSB_R 0x26

#define TRS55D_RAW_DATA2_LSB_R 0x27

#define TRS55D_RAW_TEMP_MSB_R 0x28

#define TRS55D_RAW_TEMP_CSB_R 0x29

#define TRS55D_RAW_TEMP_LSB_R 0x2A

#define ADDR_TRS55D 0xFE //(0x7F << 1)

#define _STATUS_DRDY_ 0x01 void TRS55D_read(void);

#endif

//////////////////////////////////////////////////////////////////////////////////////////////////////

// trs55d.c

//////

#include

#include "drv_i2c.h"

#include "trs55d.h"

#include "body_temp.h"

extern uint8_t uartSendString(const char* buf);

extern void OLED_ShowString(uint8_t x,uint8_t y, const char *chr,uint8_t size1,uint8_t mode);

extern void OLED_ShowBNum(uint8_t x,uint8_t y,float num,uint8_t len,

uint8_t size2,uint8_t mode); uint8_t TRS55D_IIC_Read(uint8_t addr_dev, uint8_t addr_reg,

uint8_t *buf, uint16_t count)

{

uint8_t ret;

uint8_t ackflag;

uint16_t i = 0;

drv_i2c_start();

drv_i2c_select_dev(addr_dev,DRV_I2C_OPWR);

drv_i2c_writebyte(addr_reg);

drv_i2c_start();

drv_i2c_select_dev(addr_dev,DRV_I2C_OPRD);

for(i = 0; i < count; i ++) { ackflag = (i < (count-1)) ? 1:0; buf[i]

= drv_i2c_readbyte(ackflag);

}

drv_i2c_stop();

return ret;

}

void TRS55D_IIC_Write(uint8_t addr_dev, uint8_t addr_reg, uint8_t *buf, uint16_t count)

{

uint16_t i = 0;

drv_i2c_start();

drv_i2c_select_dev(addr_dev,DRV_I2C_OPWR);

drv_i2c_writebyte(addr_reg);

for (i = 0; i < count; i ++)

{ drv_i2c_writebyte(buf[i]);

}

drv_i2c_stop();

}

typedef union{

int16_t i16;

uint16_t u16;

struct {

uint8_t u8l;

uint8_t u8h;

}un;

}uu16_t;

typedef union{

int32_t i32;

struct {

uint8_t u8b0;

uint8_t u8b1;

uint8_t u8b2;

uint8_t u8b3;

}un;

}uu32_t;

static char buffer[264];

uu32_t tobj, tamb_cal;

uu32_t vtp_cor;

float vtp_uv_f = 0.0;

float vtp_cor_f = 0.0;

float tambf = 0.0; float tobjf = 0.0;

float tbdyf = 0.0;

void TRS55D_read(void)

{

uint8_t rbuf[4];

uint8_t raddr,rdat;

uint8_t waddr = 0x0, wdat = 0x0;

int timeout=0;

waddr = 0x30;

wdat = 0x09;

TRS55D_IIC_Write(ADDR_TRS55D, waddr, &wdat,1);

//start conversion delay_ms(100);

// waite for conversion over

raddr = 0x03;

do {

TRS55D_IIC_Read (ADDR_TRS55D, raddr, &rdat,1);

} while(((rdat == 0xFF) || (!(rdat & 0x30))) && timeout++ < 200);

raddr = 0x02;

do {

TRS55D_IIC_Read (ADDR_TRS55D, raddr, &rdat,1);

} while(((rdat == 0xFF) || (!(rdat & 0x0B))) && timeout++ < 200);

// voltage value after calibration

raddr = TRS55D_NORMAL_DATA1_MSB_R;

TRS55D_IIC_Read (ADDR_TRS55D, raddr,&rbuf[0],3);

vtp_cor.un.u8b2 = rbuf[0];

vtp_cor.un.u8b1 = rbuf[1];

vtp_cor.un.u8b0 =rbuf[2];

if (vtp_cor.un.u8b2 & 0x80) { vtp_cor.un.u8b3 = 0xFF;

}else {

vtp_cor.un.u8b3 = 0x00;

// vtp after corrected

}

vtp_cor_f = (float)vtp_cor.i32/524288.0;

vtp_cor_f *= 1000;

// ambient temperature value after calibration

raddr = TRS55D_NORMAL_TEMP_MSB_R;

TRS55D_IIC_Read (ADDR_TRS55D,raddr,&rbuf[0],3);

tamb_cal.un.u8b2 = rbuf[0];

tamb_cal.un.u8b1 =rbuf[1];

tamb_cal.un.u8b0 =rbuf[2];

tambf = (float)tamb_cal.i32 / 16384.0; // ambient temperature

// object(surface) temperature after calibration

raddr = TRS55D_NORMAL_Tobj_MSB_R;

TRS55D_IIC_Read (ADDR_TRS55D,raddr,&rbuf[0],3);

tobj.un.u8b2 = rbuf[0]; tobj.un.u8b1 = rbuf[1];

tobj.un.u8b0 =rbuf[2]; tobjf = (float)tobj.i32 / 16384.0;

// object(surface) temperature

// get bodytemp

tbdyf = get_body_temp(tambf,tobjf); // get bodytemp

// display on uart sprintf(buffer, "tamb = %.2f, vtp_cor = %.2f, tobj = %.2f, tbdy = %.2f ", tambf, vtp_cor_f, tobjf, tbdyf); uartSendString(buffer);

// display on oled

float vals[4] = {tambf, vtp_cor_f, tobjf, tbdyf+0.05};

OLED_ShowBNum (64, 0, vals[0], 4, 16, 1); // Tamb

OLED_ShowBNum (48, 16, vals[1], 6, 16, 1); // vtp

OLED_ShowString(112,16, "uv",16, 1);

OLED_ShowBNum (64, 32, vals[2], 4, 16, 1); // Tobj

OLED_ShowBNum (64, 48, vals[3], 4, 16, 1); // Tbdy

}
